POOCCA Hydraulic Gear Pump for HYVA 14562010 | 052L-BI-4H5-BRITE
Product Overview
The POOCCA hydraulic gear pump is designed for HYVA 14562010 (052L-BI-4H5-BRITE) applications in commercial vehicle tipping systems.
Featuring a bi-rotational design, the pump supports interchange with the specified original configuration. It provides a hydraulic gear pump supply solution for distributors, repair businesses, and equipment maintenance companies.
The technical specifications and mounting dimensions below provide reference information for product identification and selection.
HYVA 14562010 Technical Specifications
| Parameter | Original HYVA Reference |
|---|---|
| Original Part Number | 14562010 |
| Model Designation | 052L-BI-4H5-BRITE |
| Pump Type | External Hydraulic Gear Pump |
| Displacement | 52 cm³/rev (nominal) |
| Rotation | Bi-rotational |
| Maximum Working Pressure | 275 bar |
| Mounting | PTO / Cardan Shaft Mounting |
| Suction Connection | G1″ |
| Pressure Connection | G1″ |
| Original Pump Weight | 13.5 kg |
| Application | Hydraulic Tipping Systems |

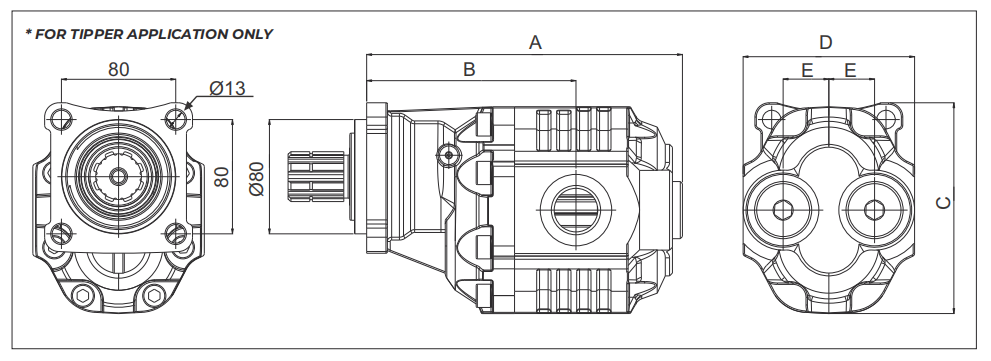

Mounting and Product Identification
When sourcing a HYVA 14562010 gear pump, the part number is an important reference, but it should not be the only factor used to confirm a suitable pump.
Check the following details:
- Original part number and complete model code
- Mounting flange and bolt-hole dimensions
- Drive shaft and spline specifications
- Hydraulic inlet and outlet connections
- Rotation and drive arrangement
- Equipment operating pressure and speed requirements
If the original nameplate is missing, photographs of the pump housing, shaft, mounting flange and ports can help identify the required configuration. Additional measurements may still be necessary.
Applications
The HYVA 14562010 reference pump is associated with commercial vehicle hydraulic tipping systems.
Typical application requirements include PTO-driven hydraulic power for vehicle tipping operations.
Before selecting a pump, confirm the hydraulic system configuration and actual installation requirements.
Frequently Asked Questions
What is the HYVA 14562010 gear pump?
HYVA 14562010 is the original part number associated with the 052L-BI-4H5-BRITE hydraulic gear pump. The original model has a nominal displacement of 52 cm³/rev and bi-rotational operation.
How can I confirm the correct HYVA 14562010 pump configuration?
Compare the original model designation, mounting flange, shaft, ports and operating requirements. The complete configuration should be confirmed before ordering.
What if the original pump has no nameplate?
Send clear photographs of the pump, including the mounting face, drive shaft, hydraulic ports and any visible identification marks. These details help the supplier review the requested model.
What information should I provide for a quotation?
Please provide the original part number, pump photographs, required quantity, destination country and available equipment information.
