Parker P1 PD Medium Duty Piston Pump
| Parker Pump Model | P1/PD 018 | P1/PD 028 | P1/PD 045 | P1/PD 060 | P1/PD 075 | P1/PD100 | P1/PD140 |
| Maximum Displacement, cm3/rev cu.in./rev | 18
1.10 |
28
1.71 |
45
2.75 |
60
3.66 |
75
4.58 |
100
6.01 |
140
8.54 |
|
Outlet Pressure – Continuous, bar psi Intermittent*, bar psi Peak, bar psi |
280
4000 |
||||||
| 320
4500 |
|||||||
| 350
5000 |
|||||||
| P1 Maximum Speed – Boosted Inlet, rpm P1 (1.0 barabs inlet), rpm P1 (0.8 barabs inlet), rpm | 3200 | 3200 | 3000 | 2800 | 2700 | 2500 | 2400 |
| 3200 | 3200 | 2600 | 2500 | 2300 | 2100 | 2000 | |
| 2700 | 2800 | 2200 | 2000 | 1900 | 1800 | 1800 | |
| PD Maximum Speed (1.0 barabs inlet), rpm PD (0.8 barabs inlet), rpm | 1800 | ||||||
| 1800 | |||||||
| Minimum Speed, rpm | 600 | ||||||
|
Inlet Pressure – Maximum, bar psi Rated, bar psia Minimum, bar psia |
10 (gage) 145 |
||||||
| 1.0 absolute (0.0 gage)
14.5 |
|||||||
| 0.8 absolute (-0.2 gage)
11.6 |
|||||||
| Case Pressure – Peak, bar
Rated, bar |
4.0 absolute (3.0 gage)
and less than 0.5 bar above inlet pressure |
||||||
| 2.0 absolute (1.0 gage)
and less than 0.5 bar above inlet pressure |
|||||||
| Fluid Temperature Range, °C °F | -40 to +95
-40 to +203 |
||||||
| Fluid Viscosity – Rated, cSt Max. Intermittent, cSt Min. Intermittent, cSt | 6 to 160 | ||||||
| 5000 (for cold starting) | |||||||
| 5 | |||||||
| Fluid Contamination – Rated, ISO
Maximum, ISO |
20/18/14 | ||||||
| 21/19/16 | |||||||
| SAE Mounting – Flange
ISO Mounting - Flange SAE Keyed Shafts ISO Keyed Shafts SAE Spline Shafts |
82-2 (A) | 101-2 (B) | 101-2 (B) | 127-2 (C) or 127-4 (C) | 127-4 (C) | 152-4 (D) | |
| 80 mm | 100 mm | 100 mm | 125 mm | 125 mm | 125 mm | 180 mm | |
| 19-1, A | 25-1, BB | 25-1, BB | 32-1, C | 32-1, C | 38-1, CC | 44-1, D | |
| 20 mm | 25 mm | 25 mm | 32 mm | 32 mm | 40 mm | 50 mm | |
| 9T, A
11T, A |
13T, B
15T, BB |
13T, B
15T, BB |
14T, C | 14T, C | 17T, CC | 13T, D | |
|
Weight – End Port, kg (lb) Side Port, kg (lb) Thru-Drive, kg (lb) |
13.4 (29.5) | 17.7 (39.0) | 23 (50) | 29 (64) | 30 (66) | 51 (112) | 66 (145) |
| 14.2 (31.3) | 18.1 (40.0) | 24 (52) | 30 (67) | 31 (68) | 53 (117) | 67 (147) | |
| 27 (59) | 34 (75) | 35 (77) | 55 (121) | 82 (180) | |||
1.POOCCA Hydraulic Manufacturers can provide you with Parker/Denison series hydraulic P1 and PD open loop pumps. Parker P1 & & PD Series medium pressure, open loop, axial piston pumps are rated to 280 BAR (4000 PSI) continuous pressure and 350 BAR (5000 PSI) peak pressure.
2.The full range of P1/PD pump units and corresponding repair and retrofit spare parts are in stock and available for purchase through POOCCA Hydraulics Works. In addition, poocca also provides various models of plunger pumps, waiting for your letter.
3.Parker P1 PD medium duty piston pump P1 piston pump: P1 018, P1 028, P1 045, P1 060, P1 075, P1 100, P1 140
PD piston pump: PD 018, PD 028, PD 045, PD 060, PD 075, PD 100, PD 140

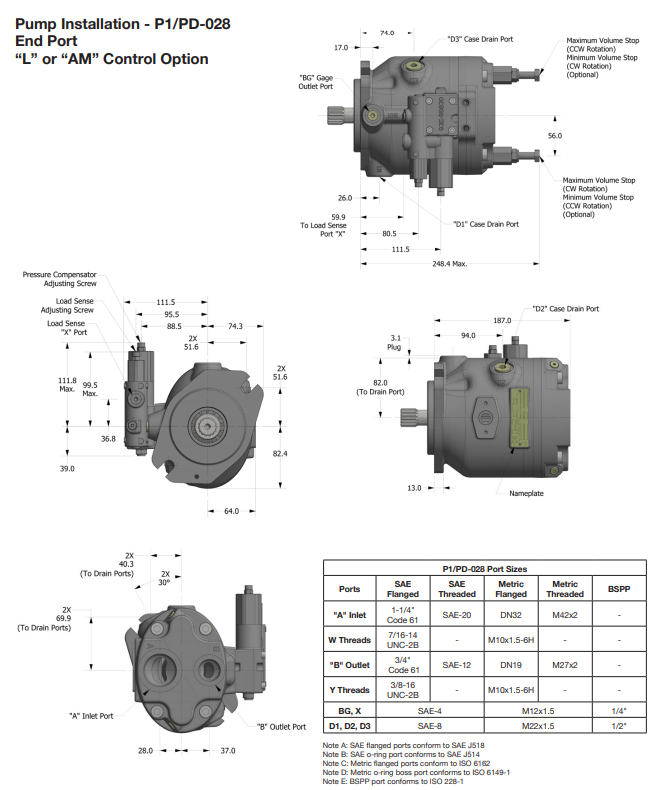

P1 PD Piston Pump Input Shaft Dimensions
• Variable displacement, axial piston pump for open-circuit applications
• Continuous operation at pressures up to 280 bar
• High drive speed models for mobile markets and low noise models
for industrial markets
• Quiet and efficient control capability
• Cam bearing design
• Compact overall package size
• High power density
• Many different standard control options
• Modular controls for easy conversions
• High operating efficiency for lower power consumption and reduced heat generation
• Elastomer seals that eliminate gaskets and external leakage
• Simple hydraulic controls with “no-leak” adjustments
• Fast and stable compensator response
• SAE and ISO standard mounting flanges and ports
• Long life, roller shaft bearings
• Long life, low friction, hydrostatically balanced swash plate saddle bearings
• Full power through-drive capability
• Multiple case drain ports for various mounting orientations
• Optional minimum and maximum displacement adjustments
• Easy to service
