YUKEN Pressure Control Valves HG-06-C4-22
| Series | Model Numbers |
Max. Oper- ating Pres. MPa (PSI) |
Max. Flow
L/min (U . S .GPM) |
Approx. Mass kg (lbs.) | ||
| Threaded
Connection |
Sub-plate
Mounting |
Threaded Connection | Sub-plate Mounting | |||
|
H Type Pressure Control Valves |
HT-03-**-*-22/2280/2290 | HG-03-**-*-22/2290 |
21(3050) |
50 (13.2) | 3.7 (8.2) | 4.0 (8.8) |
| HT-06-**-*-22/2280/2290 | HG-06-**-*-22/2290 | 125 (33) | 6.2 (13.7) | 6.1 (13.5) | ||
| HT-10-**-*-22/2280/2290 | HG-10-**-*-22/2290 | 250 (66) | 12.0 (26.5) | 11.0 (24.3) | ||
|
HC Type Pressure Control Valves |
HCT-03-**-*-22/2280/2290 | HCG-03-**-*-22/2290 |
21(3050) |
50 (13.2) | 4.1 (9.0) | 4.8 (10.6) |
| HCT-06-**-*-22/2280/2290 | HCG-06-**-*-22/2290 | 125 (33) | 7.1 (15.7) | 7.4 (16.3) | ||
| HCT-10-**-*-22/2280/2290 | HCG-10-**-*-22/2290 | 250 (66) | 13.8 (30.4) | 13.8 (30.4) | ||
| F- | H | T | -03 | -C | 3 | -P | -22 | * |
| SpecialSeals | SeriesNumber | Type ofMounting | ValveSize | Pres. Adj.RangeMPa (PSI) | 1Valve Type | WithAuxiliaryPilot Pressure | Design Number | Design Standards |
|
F: Special Seals for Phosphate Ester Type Fluids (Omit if not required) |
H:H Type
Pressure Control Valves |
T:ThreadedConnection | 03 |
L: 0.25 -0.45 (36 - 65) M:0.45 - 0.9 (65 - 130) N: 0.9 - 1.8 (130 - 260) A: 1.8 - 3.5 (260 - 510) B: 3.5 - 7.0 (510 - 1020) C: 7.0 - 14 (1020 - 2030) |
1 22
3 4 |
P: 3 With |
22 | None: Japanese Std. "JIS"80: European Design Std.90: N. American Design Std. |
| 06 | 22 | |||||||
| 10 | 22 | |||||||
| G:Sub-plateMounting | 03 | 22 |
None: Japanese Std. "JIS" & European Design Std. 90: N. American Design Std. |
|||||
| 06 | 22 | |||||||
| 10 | 22 | |||||||
| HC:HC Type
Pressure Control Valves |
T:ThreadedConnection | 03 | 12
3 4 |
PilotPressure | 22 | None: Japanese Std. "JIS"80: European Design Std.90: N. American Design Std. | ||
| 06 | 22 | |||||||
| 10 | 22 | |||||||
| G:Sub-plateMounting | 03 | 22 |
None: Japanese Std. "JIS" & European Design Std. 90: N. American Design Std. |
|||||
| 06 | 22 | |||||||
| 10 | 22 |
YUKEN Pressure Control Valves HG-06-C4-22
To adjust the pressure, loosen the lock nut and turn the pressure adjustmentscrew slowly clockwise to increase pressures or anti-clockwise to decrease pressures. After adjustments, do not forget to tighten the lock nut.

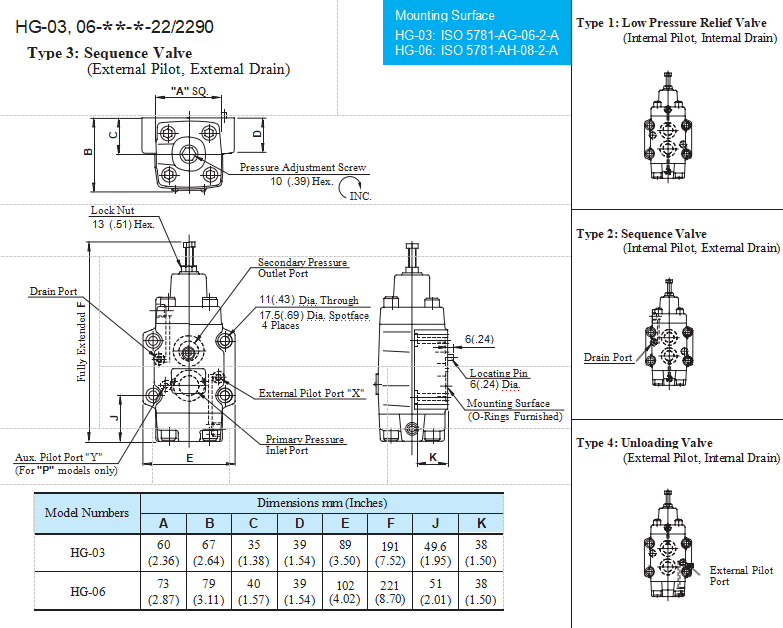

Connect the secondary side pressure ports of types 1 and 4 (internal drain) and the drain ports of types 2 and 3 (external drain) directly to the reservoir with a back pressure close to the atmospheric pressure.
There are two threaded connection primary pressure ports. They can be connected each other in-line; one as inlet and the other as an outlet or the valve can be used by plugging one of the pressure ports.
