GHP2 Gear Pump External Bomba

GHP2 Gear Pump External Bomba Featured Image
  • GHP2 Gear Pump External Bomba
  • GHP2 Gear Pump External Bomba
  • GHP2 Gear Pump External Bomba
  • GHP2 Gear Pump External Bomba
  • GHP2 Gear Pump External Bomba

Short Description:

GHP2-6,GHP2-9,GHP2-10,GHP2-12,GHP2-13,GHP2-16,GHP2-20,GHP2-22,GHP2-25,GHP2-30,GHP2-34,GHP2-37,GHP2-40,GHP2-50
Speed (rpm) 2500-1500

GHP gear pump is a high-performance aluminum single pump with cast iron flange and cover. This pump series can be used in heavy-duty systems. Single rotation and reversibility are possible.


Product Detail

Customer Feedback

Product Tags

Parameter

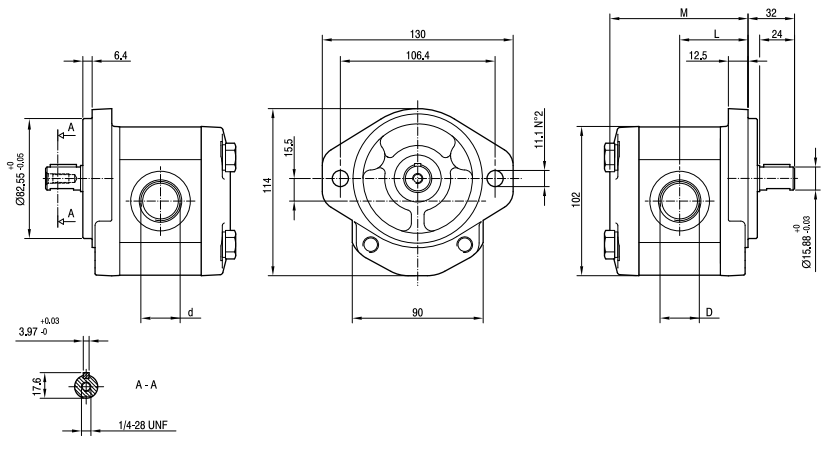

Type Displacement Flow at 1500 rev/min Maximum Pressure Maximum Speed Dimensions
P1 P2 P3 L M d D h H
GHP2-D-6 4.5 6.4 280 295 310 4000 45.5 92 13 13 M6 30
GHP2-D-9 6.4 9.1 280 295 310 4000 47 95 13 13 M6 30
GHP2-D-10 7 10 280 295 310 4000 47.5 96 13 13 M8 40
GHP2-D-12 8.3 11.8 280 295 310 3500 48.5 98 13 13 M8 40
GHP2-D-13 9.6 13.7 280 295 310 3000 49.5 100 13 13 M8 40
GHP2-D-16 11.5 16.4 280 295 310 4000 51 103 19 13 M8 40
GHP2-D-20 14.1 20.1 260 275 290 4000 53 107 19 13 M8 40
GHP2-D-22 16 22.8 260 275 290 4000 54.5 110 19 13 M8 40
GHP2-D-25 17.9 25.5 260 75 290 3600 56 113 19 13 M8 40
GHP2-D-30 21.1 30.1 230 245 260 3200 58.5 118 19 19 M8 40
GHP2-D-34 23.7 33.7 230 245 260 3000 60.5 122 19 19 M8 40
GHP2-D-37 25.5 36.4 210 225 240 2800 62 125 19 19 M8 40
GHP2-D-40 28.2 40.1 200 215 230 2500 64 129 19 19 M8 40
GHP2-D-50 35.2 50.2 160 175 190 2500 69.5 140 21 19 M8 40

GHP2 Gear Pump External Bomba

Favorable Comment

poocca hydraulic pump manufacturer (9)

GHP2 Gear Pump Feature

Marzocchi GHP2:

  1. Displacement: The GHP2 series offers a broader range of displacements, often from 4.8 cc/rev to 53.6 cc/rev, catering to a wide range of hydraulic system requirements.
  2. Maximum Pressure: These pumps can handle higher pressures compared to the GHP1 series, with maximum pressure ratings of up to 315 bar (4,570 psi).
  3. Speed Range: GHP2 pumps are suitable for hydraulic systems with speeds ranging from 800 to 3,000 RPM.
  4. Mounting Type: Like the GHP1 series, GHP2 pumps also come in various mounting configurations to suit different applications.

More Models

GHP1 TYPE GHP2 TYPE GHP3 TYPE
GHP1-D-2 GHP2-D-6 GHP3-D-30
GHP1-D-3 GHP2-D-9 GHP3-D-33
GHP1-D-4 GHP2-D-10 GHP3-D-40
GHP1-D-5 GHP2-D-12 GHP3-D-50
GHP1-D-6 GHP2-D-13 GHP3-D-60
GHP1-D-7 GHP2-D-16 GHP3-D-66
GHP1-D-9 GHP2-D-20 GHP3-D-80
GHP1-D-11 GHP2-D-22 GHP3-D-94
GHP1-D-13 GHP2-D-25 GHP3-D-110
GHP1-D-16 GHP2-D-30 GHP3-D-120
GHP1-D-20 GHP2-D-34 GHP3-D-135
GHP1A-D-2 GHP2-D-37 GHP3-D-30
GHP1A-D-3 GHP2-D-40 GHP3-D-33
GHP1A-D-4 GHP2-D-50 GHP3-D-40
GHP1A-D-5 GHP2A-D-6 GHP3-D-50
GHP1A-D-6 GHP2A-D-9 GHP3-D-60
GHP1A-D-7 GHP2A-D-10 GHP3-D-66
GHP1A-D-9 GHP2A-D-12 GHP3-D-80
GHP1A-D-11 GHP2A-D-13 GHP3-D-94
GHP1A-D-13 GHP2A-D-16 GHP3-D-110
GHP1A-D-16 GHP2A-D-20 GHP3-D-120
GHP1A-D-20 GHP2A-D-22 GHP3-D-135
GHP2A-D-25
GHP2A-D-30
GHP2A-D-34
GHP2A-D-37
GHP2A-D-40
GHP2A-D-50
