Kawasaki K3V K5V Piston Pump
Kawasaki Piston Pump K3V Series:K3V63,K3V112,K3V140,K3V280
| Size | 63 | 112 | 140 | 280 | |
| Displacement (cm3) | 63 | 112 | 140 | 280 | |
| Pressure (MPa) | 1 Rated | 34.3 | |||
| Peak | 39.2 | ||||
| Speed(min-1) | 2 Max. for self priming | 2,650 | 2,360 | 2,150 | (2,000) |
| 3 Max. | 3,250 | 2,700 | 2,500 | 2,000 | |
| Max. input torque of tandem pump (N·m) | 343 | 588 | 1,120 | 1,950 | |
| Max. input torque of attached gear pump with PTO (N·m) | 125 | 294 | |||
| Mass(kg) | Single | 48 | 68 | 86 | 140 |
| Tandem | 81 | 125 | 160 | 270 | |
| Hydraulic fluid | Type | 5 Antiwear hydraulic fluid | |||
| Oil temperature range | -20 ~ +95 。C | ||||
| Oil viscosity range | 10 ~ 1,000 mm2/S (cSt) | ||||
| Filtration | Suction line | 80 ~ 150 mesh | |||
| Return line | nominal 10 micron meter | ||||

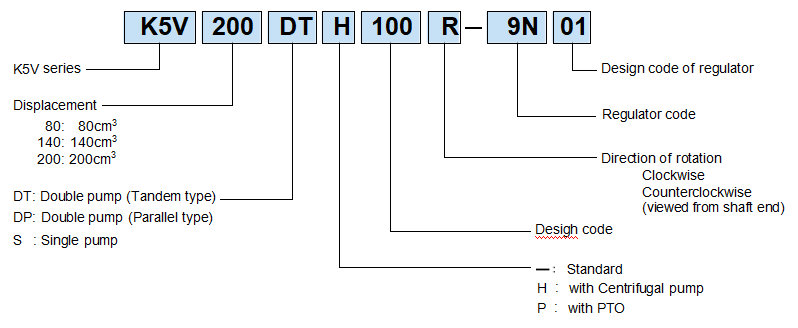

Kawasaki Piston Pump K5V Series:K5V80,K5V140,K5V200
| Size | 80 | 140 | 200 | |
| Displacement (cm3) | 80 | 140 | 200 | |
| Pressure (MPa) | 1 Rated | 34.3 | ||
| Peak | 39.2 | |||
| Speed(min-1) | 2 Max. for self priming | 2,460 | 2,160 | (2,200) |
| 3 Max. | 3,000 | 2,500 | 2,200 | |
| Max. input torque of tandem pump (N·m) | 529 | 843 | 1,120 | |
| Max. input torque of attached gear pump with PTO (N·m) | 125 | 294 | ||
| Mass(kg) | Single | 48 | 68 | 86 |
| Tandem | 81 | 125 | 160 | |
| Hydraulic fluid | Type | 5 Antiwear hydraulic fluid | ||
| Oil temperature range | -20 ~ +95 。C | |||
| Oil viscosity range | 10 ~ 1,000 mm2/S (cSt) | |||
| Filtration | Suction line | 80 ~ 150 mesh | ||
| Return line | nominal 10 micron meter | |||
