BZZ Hydraulic Steering Units
There are four models of BZZ Hydraulic Steering Unit, namely BZZ1, BZZ2, BZZ3, with a maximum pressure of 16MPa (2320PSI). They are available for sale in stock. Please contact Poocca.

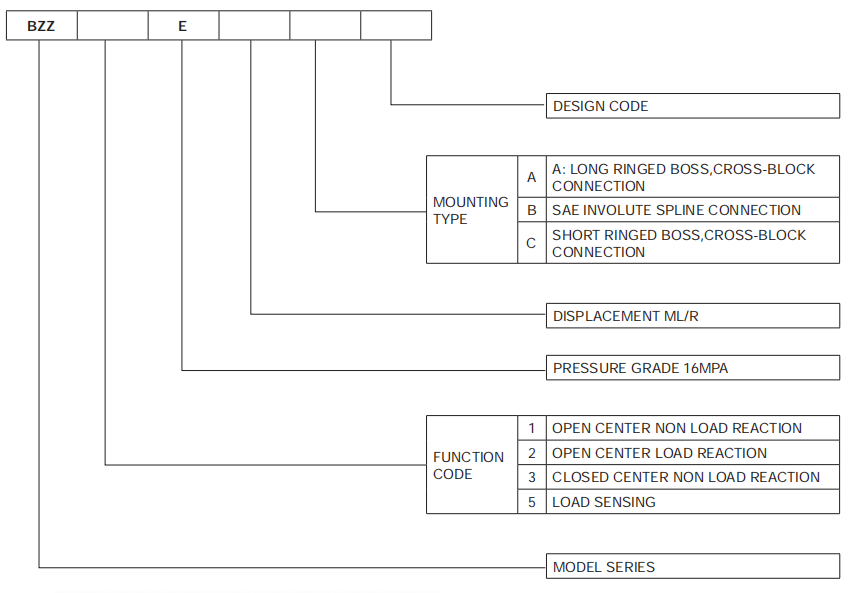

BZZ1 Open Enter Non Load Reaction
BZZ2 Open Center Load Reaction
BZZ3 Closed Center Non Load Reaction
MODEL BZZ1 BZZ2 BZZ3 OFFER THE FOLLOWING ADVANTAGES:
* Eliminate linkage-reduce cost, provide fl exibility in design.
* Provide operator comfort.
* Automatically reverts to emergency manual pump in case of engine failure.
* Provide continuous unlimited control circuits and meter sizes.
* Can work with many kinds of power steering pumps or fl uid supply systems.
| MAIN SPECIFICATION | ||||||||
|
MODEL |
Displacement | Flow | Max.input pressure | Max. cont. back
pressure |
Weight | |||
| mL/r | in3/rev | L/min | gpm | kg | lbs | |||
| BZZ1 - 2 - 3 –E50 * | 50 | 3.0 | 4 | 1.06 |
16 MPa 2320 PSI |
25 MPa 3625 PSI |
4.72 | 10.38 |
| BZZ1 - 2 - 3 –E63 * | 63 | 3.8 | 5 | 1.30 | 4.85 | 10.47 | ||
| BZZ1 - 2 - 3 –E80 * | 80 | 4.9 | 6 | 1.60 | 5.0 | 11.00 | ||
| BZZ1 - 2 - 3 –E100 * | 100 | 6.1 | 7.5 | 1.98 | 5.27 | 11.59 | ||
| BZZ1 - 2 - 3 –E125 * | 125 | 7.6 | 9.5 | 2.50 | 5.43 | 11.95 | ||
| BZZ1 - 2 - 3 –E160 * | 160 | 9.8 | 12 | 3.20 | 5.75 | 12.65 | ||
| BZZ1 - 2 - 3 –E200 * | 200 | 12.2 | 15 | 3.96 | 6.08 | 13.31 | ||
| BZZ1 - 3 –E250 * | 250 | 15.2 | 19 | 5.55 | 6.48 | 14.00 | ||
| BZZ1 - 3 –E280 * | 280 | 17.1 | 21 | 5.60 | 6.78 | 14.92 | ||
| BZZ1 - 3 –E315 * | 315 | 19.2 | 24 | 6.30 | 7.13 | 15.69 | ||
| BZZ1 - 3 –E400 * | 400 | 24.4 | 30 | 7.93 | 7.78 | 17.12 | ||
| BZZ1 - 3 –E500 * | 500 | 30.5 | 38 | 10.04 | 8.67 | 19.07 | ||
| BZZ1 - 3 –E630 * | 630 | 38.4 | 48 | 12.68 | 9.72 | 21.38 | ||
| BZZ1 - 3 –E800 * | 800 | 48.8 | 60 | 15.85 | 11.18 | 24.60 | ||
| BZZ1 - 3 –E1000 * | 1000 | 61.0 | 75 | 19.81 | 12.8 | 28.16 | ||

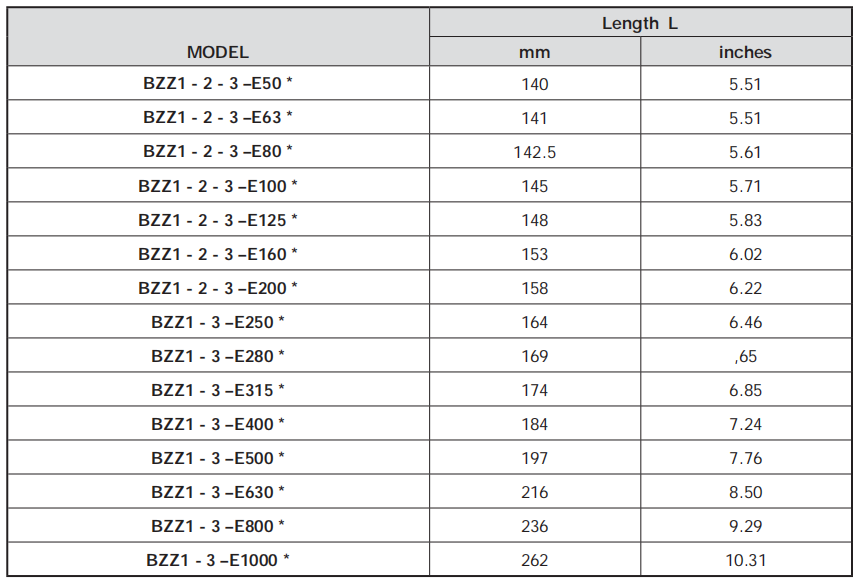

Note: Above is for short ringed boss connection dimension. When dimension is 18, 25, 30.5 instead of 9,16,19.5 long ringed boss connection is available for reference above.
SCU can be used in the area of steering of vehicle and hydraulic rudder of ships where the operator can use it to control power steering force with light operating force.it is safe, reliable and smooth in the function and operation.
